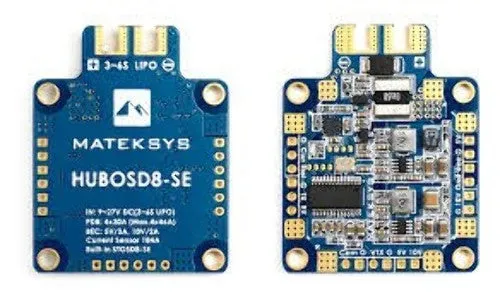

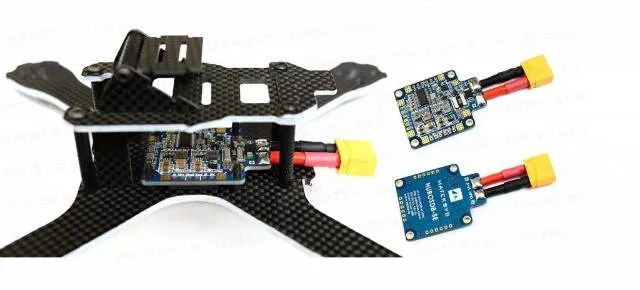

HUBOSD8-SE has been engineered to provide the highest possible performance and reliability in a 46*36mm & 4 layers PCB. It is a multifunctional HUB with PDB, BEC 5V/1.5A &10V/1.5A, Current sensor 184A, STOSD. It is specially made for the mini FPV Quad. Built-in STOSD8 can support Plug & Play, no complicated settings needed.

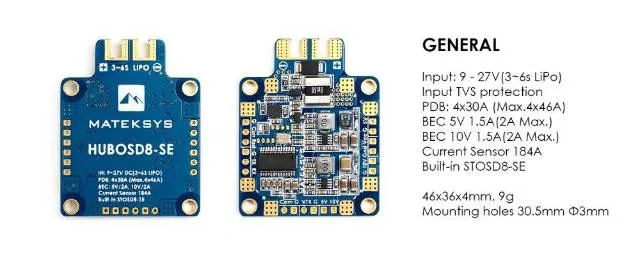

Specifications:
- Input: 9~27V (3-6S LiPo)
- Input TVS protection
- Current Rating: 4X30A (Max.4x46A)

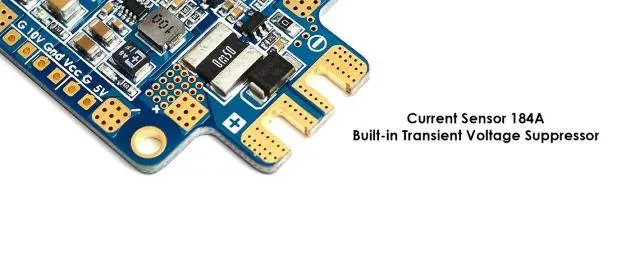

- Current sensor 184A
- Built-in STOSD8-SE

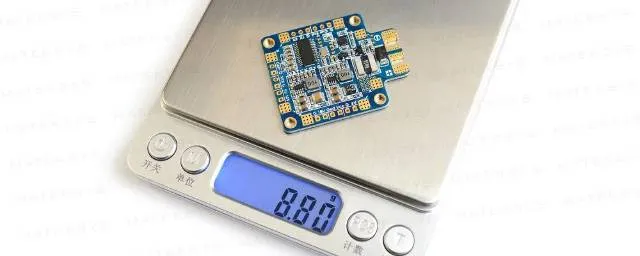

- 46x36x4mm, 9g

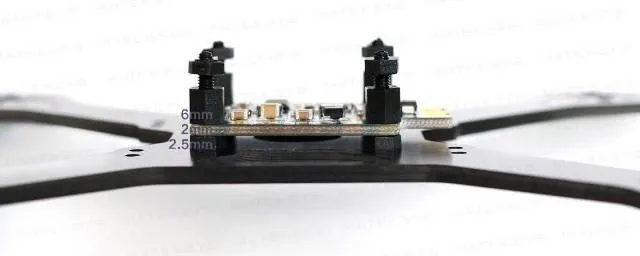

- Mounting holes 30.5mm Ø3mm
BEC 10V Outputs
- Designed for Video TX or FPV camera.
- Voltage: 10.0 /- 0.2VDC
- Continuous current: 1.5 Amps (Max.2A 10s/minute)
- Output Ripple: 15mV (VIn=24V, [email protected] load)
- Short-circuit tolerant (2 seconds/minute)
- 10V can be used to power cameras labeled as 12V
BEC 5V Outputs
- Designed for RC Receivers, Flight controllers, OSD, and Servos.
- Voltage: 5.0 /- 0.1VDC
- Continuous current: 1.5 Amps (Max.2A 10s/minute)
- Output Ripple: 23mV (VIn=24V, [email protected] load) Short-circuit tolerant (2 seconds/minute)

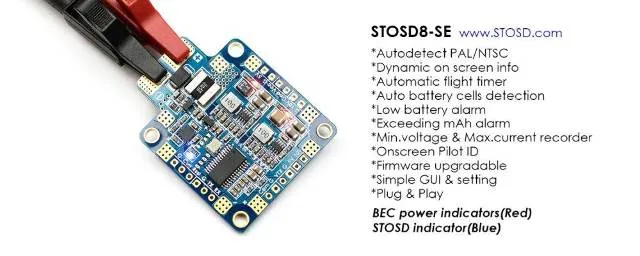

STOSD8 www.stosd.com
- Autodetect PAL/NTSC
- Dynamic on screen info
- Automatic flight timer
- Automatic cell detection
- Low battery alarm
- Exceeding mAh alarm
- Min.voltage & Max.current recorder
- Onscreen Pilot ID
- Firmware upgradable
- Simple GUI & setting
- Plug & Play
