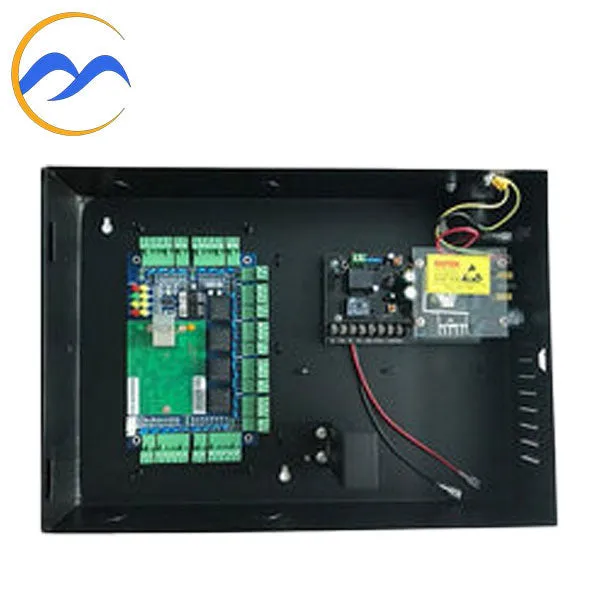

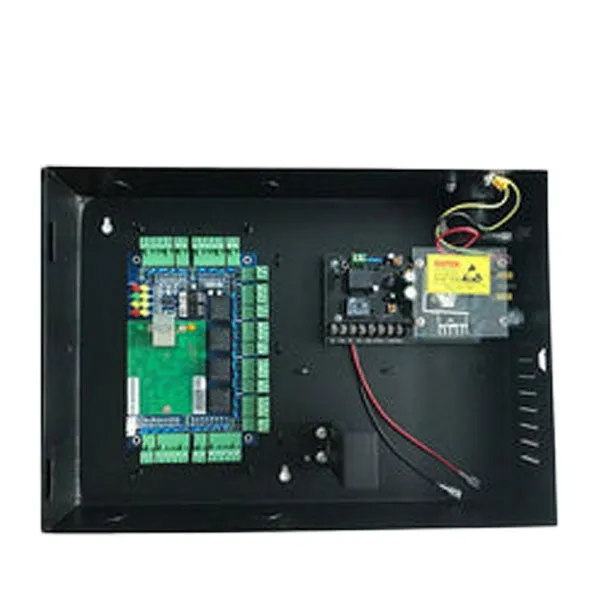

Control 4 doors via RFID card access and managed by the easy-to-use Malibu access control module.
**Back up battery not included**
Note: Must have the 4 Door Controller with Module (MAC-004-CM) to use this extension. The 4 Door Controller with Module controls the first 4 doors and this extension allows you to add 4 additional doors either in the same or different location. (Additional multiples of 4 doors require an extension for each set.)
Each door requires a Monthly License Fee Per Door Please be sure to manually add a monthly subscription for each door needed.
Now this Module has Mobile Credentials. The mobile credential can be setup with the same access level as a normal RFID card. Download the ""app to use your phone for access control. It doesn't use Bluetooth. It's the most simple yet secure mobile credential on the market.
Features:
- Output Voltage: 12V
- Output Electric Current: 5A
- Output Power: 60W
- Operating Temperature: -20°C ~ 60°C
- Operating Humidity: 90%
- AC Input Voltage 220V/110V 50Hz
Specifications:
| PCB Board Size | 160 x 106 mm (6.3 x 4.17 in) |
| Case Size | 273 x 228 x 65 mm (10.75 x 8.98 x 2.56 in) |
| Power Supply | 12V DC 4-7A |
| Power Consumption of Circuit Board | <100mA |
| Doors Controlled | 8 doors with extension MAC-004-CM |
| Door opening time extending setting | 1-600 seconds (adjustable) |
| Operation Temperature | -40℃~70℃ (-40ºF~158ºF) |
| Operation Humidity | 10-90% RH, No Condensation |
| Quantity of users | 20,000 |
| Quantity of Event Buffers (offline) | 100,000 event buffers |
| Power interruption protection measure | High speed memory, records never lost |
| Max Distance from Reader to Controller | 100m or 328 ft (suggested distance 80m or 262 ft) |
| Max Distance between Controllers | TCP/IP: Depends on net coverage area |
| Alarm | Goes off when door is open for an extended time, illegal break in, intimidate |
| Unlock | Based on internal and external validation |
Package Includes:
- 1 x Access Control Board
- 1 x Power Supply
- 1 x Panel Enclosure
