Description

This led dimmer mainly used to adjust the light brightness of your single colour led strips depending on your actual requirement. With it, it not only can provide you with a soft, stable light to use but also can avoid rush current and protect your led lights from being damaged. Besides, It is also easy to install and simple to operate with a knob controller, convenient for you to use at the home.

Features:

• 0-100% brightness can be adjustable, making the light soft, stable without flickering.
• When PWM digital is dimming, it can avoid rush current, protecting your led light from being damaged.
• Constant voltage and constant current output can be connected with amplifiers to extend its load.
• Simple to use. With a knob controller, it's operated by manual. It also has an auto memory function, bring your much convenience to use at home.
• Easy to install.

Specification:

Condition: 100% New Brand

Colour: Shown as picture

Material: Metal

Brightness Adjustable Rang: 0-100%

Input Voltage: DC 12V-24V 30A

Input Current: 0-30A, Less than 30A

Power: 12V 360W, 24V 720W

Static Power Consumption: 1W

Working Temperature: -20-60 degree centigrade

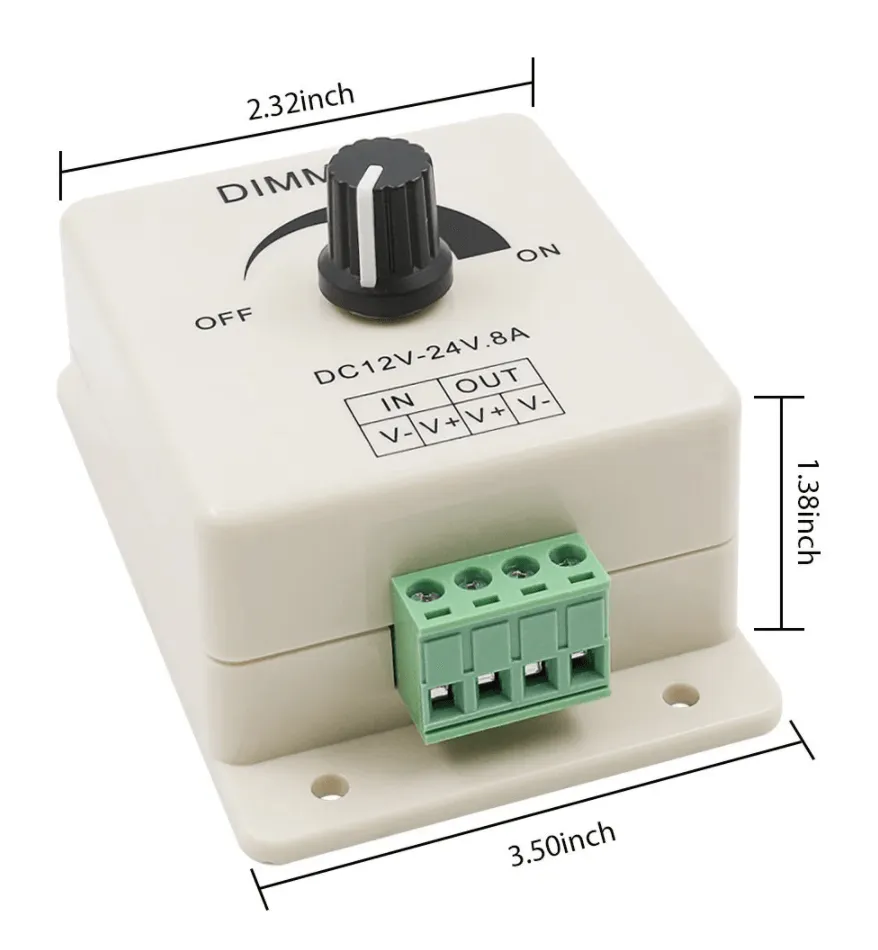

Led Dimmer Dimension (L x W x H): Approx. 85 x 66 x 20mm / Approx.3.3 x 2.6 x 0.8inch

Package Weight: Approx. 130g

Package Included:

1 x Led Switch Dimmer

1 x Use Manual

Note:

It is suggested that don’t use this switch to adjust the multi-colour mix led lamp, such as RGB lights or strip lights, table lamp, fans, energy-saving light/bulb etc.
