12V 225RPM 1.3kgfcm Brushed DC Geared Motor w/ Encoder
$41.97
$54.56
Save: $
Title:
DefaultTitle
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$
Product Details
Description
DC Gearmotor with Encoder
Voltage: 12VDC
Speed (RPM): 201 - 300
Torque (kgf.cm): 1.01 - 2.00
Gear Ratio: 20:1
Current: 570mA

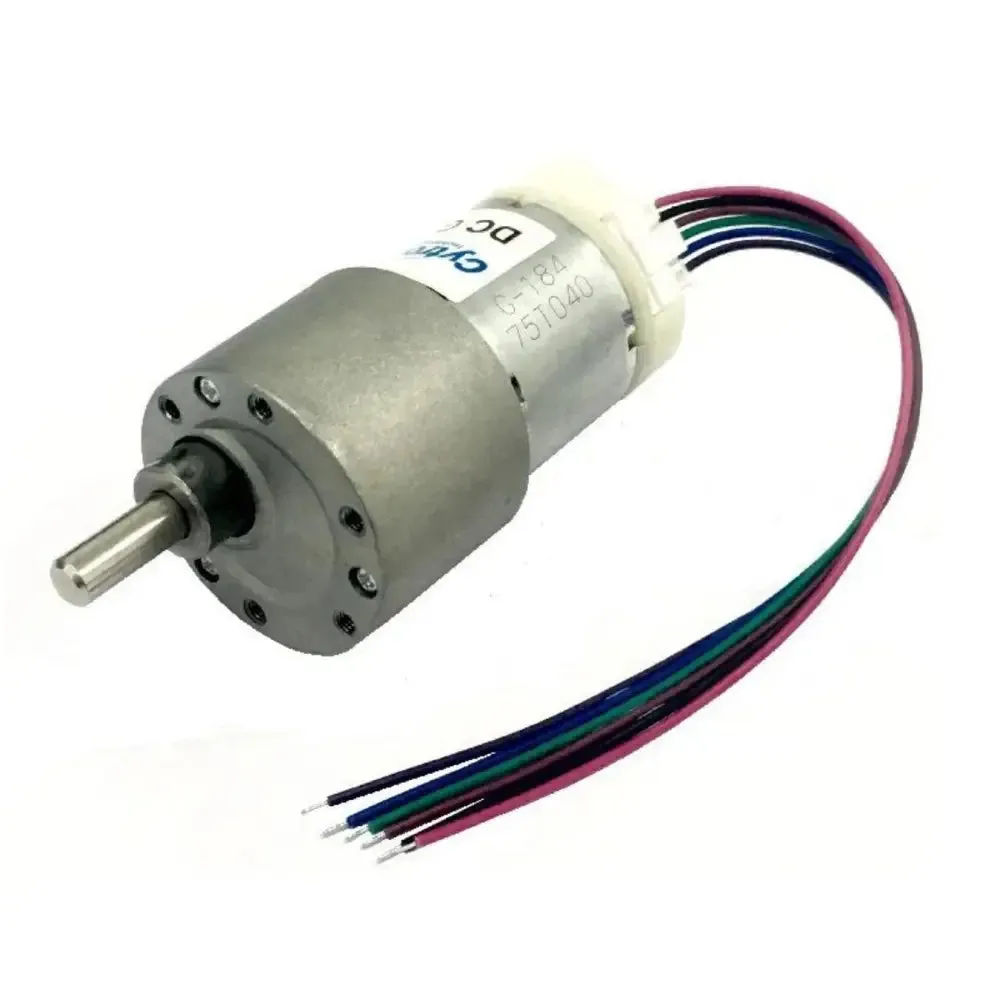

The 12V 225RPM 1.3kgfcm Brushed DC Geared Motor w/ Encoder is mounted with quadrature hall effect encoder allowing us to do monitoring in position and direction of the motor rotation. This is very useful especially when we are building a pulling system or conveyor system. Two hall effect sensors are placed 90 degrees apart to sense and produce two outputs, A and B which is 90 degrees out of phase and allowing the direction of rotation to be determined.
